Data Center Controls: What Manufacturers Need to Know

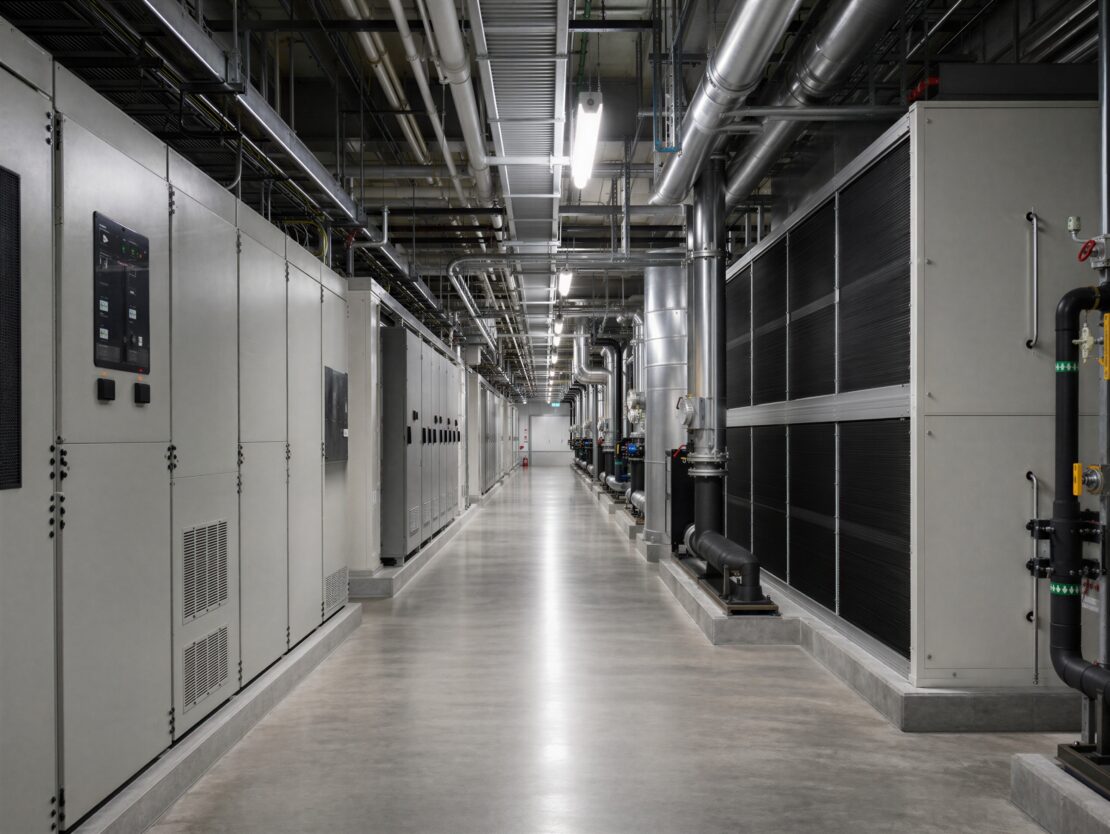

A manufacturer moving into the data center market, building one, supplying equipment, or servicing the systems inside it, meets a control environment that looks familiar and behaves differently. According to the International Energy Agency, global data center electricity demand is projected to more than double by 2030, reaching about 945 TWh, driven largely by AI workloads. Data center controls are the integrated systems that monitor and manage power, cooling, and environmental conditions across a facility built to run without interruption. The instruments, networks, and controllers will look recognizable to any plant engineer. The tolerance for downtime will not. Knowing where the two worlds overlap, and where they diverge, separates a clean skills transfer from expensive lessons on a live critical facility.
What are data center controls?
At a working level, data center controls are the layered monitoring and automation systems that keep a facility’s power and cooling inside tight limits so the computing load never loses conditioned power or drifts out of thermal spec. They cover two domains. The building management system, or BMS, governs mechanical and environmental equipment: cooling units, pumps, air handling, humidity, leak detection, and often generators. The electrical power monitoring system, or EPMS, tracks power quality and consumption from the utility feed through switchgear and UPS down to the rack. Above both sits a supervisory layer, usually a SCADA system or a DCIM platform, giving operators one view and a time-stamped record of every alarm.
One distinction orients the rest: a plant-floor control system exists to make product, while a data center control system exists to protect a continuous load. That single difference reshapes almost every design decision that follows.
How data center controls differ from plant-floor controls
On a plant floor, a controlled stop is routine. Lines pause for changeovers, maintenance, and shift changes, and the logic is built to start and stop cleanly. A data center has no changeover. The load runs around the clock, and the controls are judged by how well they hold power and cooling steady without interruption. Three practical differences follow:
Availability outranks throughput
Success is measured in uptime and mean time between failures, not units per hour. A cooling sequence that recovers gracefully after a utility sag matters more than one that optimizes efficiency at steady state.
Redundancy is engineered into every layer
Power paths, cooling loops, controllers, and networks are duplicated so any single component can fail or be serviced without dropping the load.
The environmental envelope is narrow
Temperature and humidity are held within a defined band continuously, because the protected equipment has no tolerance for excursions.
The building management system is the backbone of data center controls
The BMS is the supervisory system that runs a data center’s mechanical and environmental equipment. It sequences cooling, staging chillers and computer room units up and down with the heat load, manages airflow and humidity, watches for leaks beneath raised floors, and coordinates generator start and load transfer during a utility loss. In a well-designed facility it also enforces the cooling redundancy strategy, deciding which units carry the load and which stand by.
For a manufacturing engineer, the BMS is the most recognizable piece: PLC and SCADA work pointed at a different set of endpoints. The logic discipline, alarm management, and network design transfer directly; the equipment list and the failure consequences do not.
EPMS and power monitoring: tracking every watt from utility to rack
The electrical power monitoring system gives operators visibility into power across the facility. It meters the utility feed, generators, switchgear, UPS systems, distribution units, and branch circuits, then reports power quality, load balance, and available capacity in real time. Two jobs sit on that data. Event capture records the exact sequence when a breaker trips or a UPS transfers to battery, so operators see what happened and in what order. Capacity planning tracks how much stranded power remains before a row or room fills up.
Power monitoring also feeds the efficiency metric operators live by. Power usage effectiveness, or PUE, compares total facility power to the power delivered to computing equipment, and the controls that manage cooling and distribution move that number directly.
Cooling control: CRAC, CRAH, and holding thermal spec
Cooling is where control tuning shows up fastest. Most data centers reject heat with computer room air conditioning units (CRAC units), which use direct refrigerant cooling, or computer room air handlers (CRAH units), which use chilled water from a central plant. Either way the controls hold supply air temperature and humidity within a target range, commonly guided by the ASHRAE thermal envelope, while managing airflow through hot-aisle and cold-aisle containment.
According to Schneider Electric, AI workloads are driving rack power densities well beyond traditional enterprise deployments, with many new installations designed for 50–100+ kW per rack. The control challenge is coordination. Individual units fighting each other, one humidifying while another dehumidifies, waste energy and destabilize the room. Good cooling control sequences units as a group, matches capacity to the live heat load, and rides through the loss of any single unit without letting rack inlet temperatures climb out of spec.
Redundancy and uptime: how tier ratings shape the control design
Reliability in a data center is often described with the Uptime Institute tier system, from Tier I through Tier IV. The practical shorthand is the redundancy model behind each level: N is the bare capacity needed to carry the load, N+1 adds one spare component, and 2N provides a fully duplicated path.
Those levels land on the control system. Automatic transfer sequences, controller redundancy, and dual network paths exist so the act of maintaining or losing one element never interrupts power or cooling. Designing controls for a Tier III facility is a different exercise from designing them for a plant line that can absorb a planned stop.
Integration and interoperability are the real difficulty
The individual systems in a data center are well understood. The hard part is making them work together. A single facility commonly runs BACnet on the mechanical side, Modbus on power meters and switchgear, and SNMP on IT and network gear, with a DCIM or SCADA platform expected to unify all of it. Gaps between those protocols, and between equipment from different vendors, are where integration projects stall.
This is where integrator experience earns its place. Mapping alarms consistently across a BMS, an EPMS, and a DCIM layer, normalizing data so a single dashboard is trustworthy, and validating failure sequences before go-live are the interoperability problems a seasoned control systems integrator already solves on a plant floor, now applied to a critical facility. Cross-industry pattern recognition, having integrated dissimilar systems under production pressure elsewhere, transfers well here.
What transfers from the plant floor, and what does not
Manufacturing engineers arrive with more relevant skill than the acronyms suggest. PLC programming, SCADA architecture, industrial networking, alarm rationalization, and the habit of designing for uptime under schedule pressure all carry over, and Siemens-based control platforms are as common in critical facilities as on the plant floor.
What changes is the consequence model and the redundancy expectation. A plant can usually schedule its way around a fault; a data center has to ride through it. Engineers who respect that difference, and prove the control sequences before commissioning, adapt quickly. For how these layers come together in practice, our guide to BMS integration for data centers covers the integration work in detail.
Frequently asked questions
A BMS manages mechanical and environmental systems, including cooling, airflow, humidity, and generators, while an EPMS monitors electrical power from the utility feed down to the rack. The BMS keeps the room in thermal spec; the EPMS reports how much power is flowing, whether its quality is clean, and how much capacity remains. In most facilities both feed a supervisory layer, so operators see mechanical and electrical status together and correlate alarms during an event.
DCIM, or data center infrastructure management, sits above the BMS and adds an IT-facing view: rack-level power and space capacity, asset tracking, and the link between physical infrastructure and the computing load it supports. A BMS controls the mechanical equipment; DCIM correlates that infrastructure with utilization and capacity planning. Smaller facilities sometimes run without a dedicated DCIM layer, while larger sites use it to plan capacity before a row runs out of power or cooling.
Most data centers combine BACnet for mechanical and building systems, Modbus for power meters and switchgear, and SNMP for IT and network equipment, with a supervisory SCADA or DCIM platform tying them together. This mix is why integration is the demanding part of a controls project: each protocol has its own data model and quirks, and a dashboard is only as trustworthy as the mapping underneath it. Getting alarm points, engineering units, and naming consistent across protocols is routine integration work, done with critical-facility consequences.
A concurrently maintainable facility can take any single piece of equipment, a cooling unit, a UPS, or a controller, offline for planned maintenance without interrupting power or cooling to the load. It corresponds roughly to Uptime Institute Tier III. For the control system, this means redundant controllers, automatic transfer logic, and dual network paths, all validated so a maintenance action on one path never disturbs the other. It is a stricter standard than the redundancy most plant lines are built to tolerate.
Plant HVAC generally holds a comfortable range for people and processes with wide tolerances. By contrast, data center cooling holds a tight temperature and humidity band continuously for equipment that cannot tolerate excursions, and it does so while sequencing many units as a coordinated group. The logic emphasizes stability and ride-through: staging capacity to the live heat load, preventing units from fighting each other, and holding rack inlet temperatures in spec even if one unit drops. Hot-aisle and cold-aisle containment adds a control variable plant HVAC rarely handles.
PUE, or power usage effectiveness, is the ratio of total facility power to the power delivered to computing equipment; a number closer to 1.0 means less overhead lost to cooling and distribution. Controls affect PUE directly, because cooling and power management are the largest sources of that overhead. Well-tuned cooling sequences, accurate setpoints, and coordinated unit staging lower the number, while poorly coordinated controls waste energy and raise it.
Data centers reward the same instincts that make a good manufacturing controls project: rigorous integration, honest assessment of failure modes, and a partner who stays until the system is proven. Patti Engineering brings multi-platform control systems integration experience across industries into the data center space, along with the follow-through to see a project through commissioning. If your team is moving into or serving the data center market, we can help translate proven automation practice into a facility built to run without interruption.
Talk with our control systems integration team about your data center project.
