HMI vs. SCADA: What’s the Difference and How Do They Work Together?
SCADA vs. HMI is one of the most common points of confusion on a plant floor, and it surfaces right where it costs money: in the scope of a project. Specify SCADA where a well-placed HMI would do, and you pay for servers, historians, and network architecture the operation will never use. Go the other way, buying only an HMI where the plant needs supervisory visibility, and engineers end up blind across lines and shifts. The two solve related but different problems, and choosing correctly separates a right-sized project from an expensive mismatch.
The short version: an HMI is the operator interface at a single machine or process, while SCADA is the supervisory layer that acquires data from and coordinates control across many machines, lines, or sites. One is local. The other is system-wide. They overlap in the screens an operator touches, which is exactly why the two get conflated.
What Is an HMI?
An HMI, or human-machine interface, is the screen and interaction layer that lets an operator see and control one machine or process. It reads directly from the controller, typically a PLC or PAC, renders live values and states, and passes operator commands back down. Starting a pump, acknowledging an alarm, adjusting a setpoint, jogging an axis: that interaction happens at the HMI.

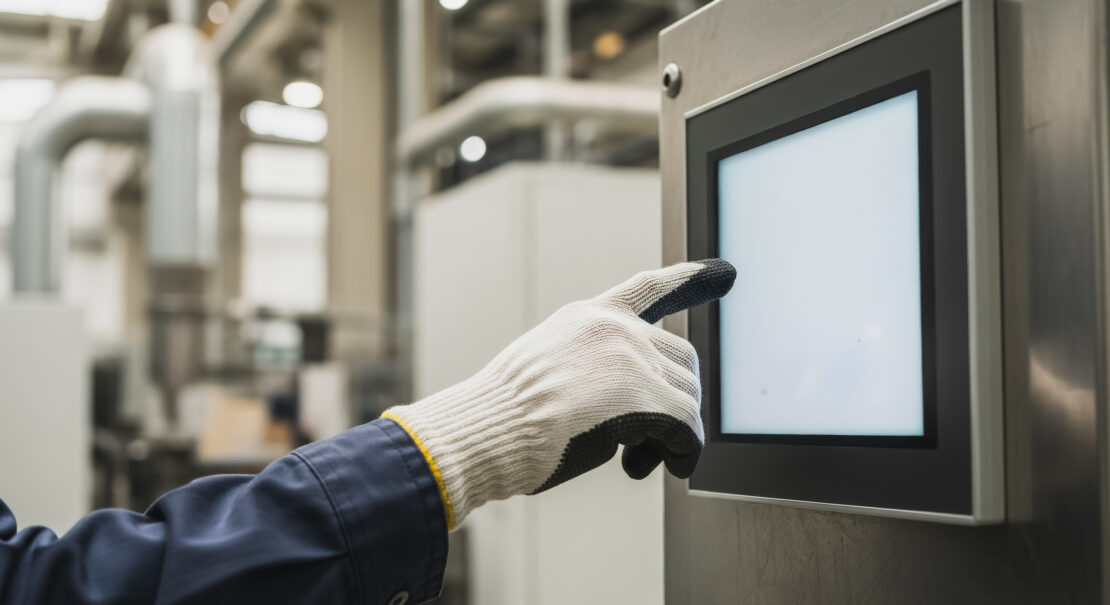

The interface lives at the equipment, usually a panel-mounted or pedestal terminal within arm’s reach of the machine it drives and scoped to that machine’s I/O. Its data is real-time and local, showing what is happening right now on this line and holding little or no long-term history. The job is operator control and immediate feedback at the point of work, not analysis across the plant.
What Is SCADA?
SCADA, supervisory control and data acquisition, is the layer above individual machines. It gathers data from many controllers, HMIs, and remote units, presents a consolidated view of an entire process, line, or site, and lets operators supervise and adjust that wider system from one place. Where an HMI answers “what is this machine doing,” SCADA answers “what is the whole operation doing, and how do the pieces relate.”
Several components separate a SCADA system from a plain interface: a data acquisition layer polling distributed controllers and remote terminal units, a historian that logs values over time for trending and analysis, a supervisory control function that pushes setpoints and commands across the system, and often a server architecture serving multiple client screens. The design goal is scale and time: SCADA coordinates equipment spread across a building or geography and keeps the record of how the process behaved last week, not only this second.
HMI vs. SCADA: The Core Difference
The cleanest way to separate them is by scope of control and depth of data.
Scope. At the local level, an HMI controls and monitors a single machine or process. SCADA supervises many machines or processes at the system or site level. One is a window into a unit; the other is a control room for the operation.
Data. At the machine, an interface works in the present and locally, showing live values with limited retention. SCADA, by contrast, acquires, aggregates, and stores data over time, which makes trending, historical analysis, and reporting possible.
Location. The interface sits at the equipment. SCADA runs on servers and client workstations, often in a control room, pulling from equipment distributed across the site.
Control authority. HMI control is direct and immediate to its machine. SCADA control is supervisory, setting targets and coordinating across units rather than jogging a single actuator.
One rule holds the two apart: every SCADA system presents information through HMI-style screens, but many interfaces run with no SCADA above them. The visualization overlaps. The architecture underneath does not.
How HMI and SCADA Work Together in the Control Stack
In a conventional automation hierarchy, sensors and actuators sit at the bottom, and controllers (PLCs or PACs) sit above them executing real-time logic. Each HMI attaches to a controller, giving operators a view and controls for that machine. Above the controllers sits SCADA, acquiring data from many of them and spanning the system with a supervisory layer; higher still sit MES and ERP systems, concerned with production and business management.
Data flows up and commands flow down. A sensor reading enters the PLC, which surfaces the value to the local interface, while SCADA polls that PLC and dozens of others, logs the readings to a historian, and shows the consolidated state to a supervisor. The local interface handles the machine loop; SCADA handles the system loop.
On most plant floors, then, the two are layers of one system rather than competing choices. An operator at a filling line runs that line from the local HMI; a shift supervisor uses SCADA to watch every line at once, catch a developing bottleneck, and pull the history behind a recurring fault. Modern platforms blur the line technically, since one software environment can serve both a machine interface and a full SCADA deployment, yet the roles stay distinct: local control and supervisory oversight.
Do You Need SCADA, or Is an HMI Enough?
This is the decision that actually matters, and getting it right is a question of scope, not prestige.
An interface alone is usually sufficient when the operation is a single machine or a self-contained process, when operators need direct local control and immediate feedback, and when there is no real requirement for centralized data collection, cross-line coordination, or long-term historical analysis. A standalone machine, a small skid, a discrete process that one operator runs: an HMI does the job, and adding SCADA means paying for infrastructure the plant will not use.
The supervisory system earns its cost under a different set of conditions: monitoring and coordinating multiple machines, lines, or locations from one place; historical data for trending, compliance, or process improvement; distributed equipment that has to be supervised remotely; or decisions that depend on seeing how the whole system behaves rather than one unit at a time. Multi-line plants, sites with regulatory data-retention requirements, and operations chasing OEE gains through historical analysis all fall in that territory.
The failure modes run in both directions. Over-buying SCADA for a single-machine operation loads a plant with servers, licensing, and maintenance it did not need. Under-building leaves a multi-line operation on isolated interfaces with no supervisory layer, so engineers stitch together a plant-wide picture by hand and lose the history that would let them find the real problem. Right-sizing is the whole game.
An integrator’s judgment earns its keep at exactly this point. Patti Engineering integrates both HMI and SCADA across Siemens, Ignition, and other platforms, and the useful conversation is rarely “which product.” It is what the operation needs now, what it will need as it scales, and how to build so today’s interface investment still fits when a supervisory layer becomes worth adding.
Frequently Asked Questions
No. The two operate at different levels of the control system. An HMI is the operator interface for a single machine or process, reading from one controller and giving direct local control. SCADA is a supervisory system that acquires data from many controllers, stores it over time, and coordinates control across a line or site. It usually presents that information through HMI-style screens, which is why the two get confused, but the architecture underneath, distributed data acquisition, a historian, server-based clients, is what makes it more than a large interface.
Not in any practical sense. A supervisory system needs a visualization layer for operators and supervisors to see and act on the data it collects, and that layer is functionally an HMI. The reverse is common: plenty of machines run an interface with no SCADA above them. The accurate framing is that SCADA incorporates HMI-style visualization as one component and adds data acquisition, historians, and supervisory control on top.
Not automatically. A small operation running one machine or a single self-contained process is usually well served by an HMI alone, with no need for the servers and historians a supervisory system brings. SCADA starts to earn its cost when a plant runs multiple lines worth coordinating, when historical data is needed for compliance or process improvement, or when equipment has to be supervised from a central point. Scope matters more than size: a small plant with regulatory data-retention needs may want SCADA, while a larger single-machine shop may not.
An interface shows live, local values and typically keeps little long-term history. SCADA adds a historian that logs values over time across many devices, which enables trending, event analysis, and reporting. It also aggregates data from distributed controllers and remote units into one dataset, so you can compare lines, correlate events across the plant, and reconstruct what happened during a fault. The distinction is time and breadth: an HMI reports the current state of one machine, while SCADA records how the whole system has behaved.
Often, yes, if the groundwork is laid. Some modern platforms use a common software environment for both machine-level interfaces and full SCADA, so a local HMI built on that foundation can extend into a supervisory system without starting over. The key is planning tag structure, naming, and network architecture early, so the local investment carries forward. Where interfaces are deployed as isolated islands with no shared standard, adding SCADA later usually means rework, which is one practical reason to involve an integrator before the first HMI goes in.
The PLC, or PAC, does the actual control, reading sensors, running the logic, and driving actuators in real time. Operators reach that machine through an HMI attached to the PLC, which provides a view and manual controls. Above the PLCs sits SCADA, polling many of them to acquire data and issue supervisory commands. Neither layer replaces the controller; both are ways of seeing and directing what the PLCs do, at the machine level and the system level respectively.
The costliest HMI and SCADA decisions are the ones made on assumption: buying a supervisory system a single line does not need, or wiring up isolated interfaces that leave a multi-line plant with no shared view. If you are weighing a local interface against a supervisory system, talk to an integrator who will tell you when an HMI is enough and build it so it still fits when you grow. Patti Engineering scopes HMI and SCADA work around what your operation needs now and where it is headed.
